How to Verify Crown Prep Reduction Before the Impression

The prep looked fine in the mirror. It looked fine with the patient closed. Then the lab called to say there was not enough room, or the crown came back and you ground through it trying to get it out of occlusion.

Almost every dentist has had that case. The frustrating part is that the fix would have taken seconds at the prep appointment. Here is what goes wrong when occlusal reduction is off, how most offices check it today, and what each method leaves out.

What goes wrong when reduction is off

Too little reduction leaves the lab with bad options. They can make the crown thin and risk a fracture, leave it high and let you adjust it chairside, or call and ask for a re-prep. None of those is good for the schedule or the patient.

Too much reduction is quieter but just as real. You lose tooth structure you cannot put back, the prep gets shorter, and a shorter prep has less to hold the crown.

The misses also tend to show up in the same places. A 2025 study in the Journal of Dental Education scanned 55 crown preps from a dental school clinic. Just over 47% had at least one area without enough occlusal clearance, and functional cusps came up short more often than non-functional cusps. Those were student preps, so do not read it as the rate in your practice. The location is the useful part. The spots that get missed are the ones that are hardest to see.

How much room you need

It depends on the material. A common rule of thumb:

1.0 mm for gold and all-metal crowns
1.5 mm for porcelain fused to metal
2.0 mm for all-ceramic, zirconia and CAD/CAM restorations

Your lab and the material manufacturer have the final word on minimums, so check their numbers for the material you are using.

Four ways to check before the impression

Method	What it tells you	What it leaves out
Looking with the patient closed	A quick read on whether there is space	Distance is hard to judge by eye, especially on second molars and lingual cusps
Depth cuts during the prep	How much tooth you have removed	Clearance to the opposing tooth. A worn or tipped tooth can get full depth cuts and still end up tight
Wax bite or silicone measured with a caliper	An actual number at each spot	Extra material and time, and you have to carry the thin spot back to the tooth in your head
Clearance tab or gauge of a known thickness	A yes or no answer with the patient closed	Plain tabs and metal gauges do not show where the tight spot is

Most offices rely on one of the first two, and most of the time that works. The cases that come back are usually the ones where the check said "probably."

A check that also shows you where

PrepCheck® is the tab Dr. John Garrison, DDS designed to answer both questions at once. One side checks clearance. The other side marks the spot.

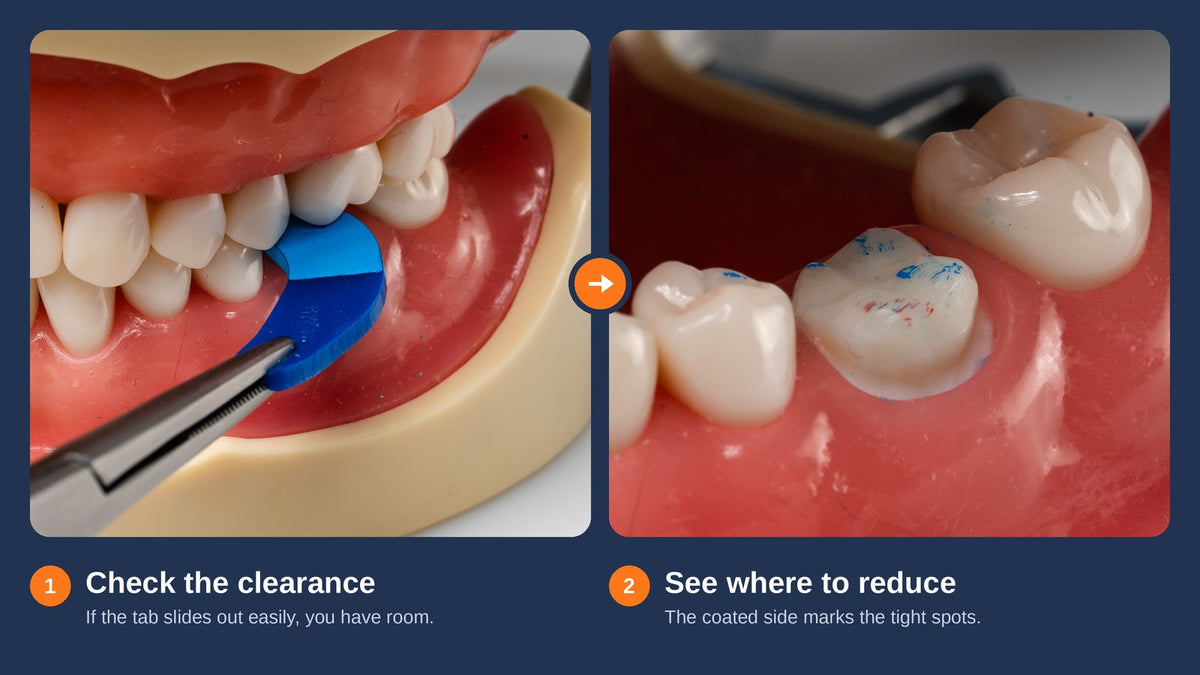

Test. Place the uncoated, darker side between the prep and the opposing teeth and pull gently. If it slides out easily, you have room.
Mark. If it drags, flip to the coated, lighter side and have the patient tap or grind. The marking powder transfers to the areas that need more reduction.
Reduce and verify. Reduce the marked areas and test again. Repeat until the tab slides freely.

The tabs are color coded to the thicknesses above. Pink is 1.0 mm, green is 1.5 mm and blue is 2.0 mm. A Mini size in 1.5 mm and 2.0 mm fits bicuspids, lower incisors and maxillary laterals. Each tab is single use.

Is it worth a tab on every crown?

Not necessarily. It earns its place on posterior preps where you cannot see well, on all-ceramic cases where a thin spot matters most, and any time you want to avoid a call from the lab.

The math is simple. A tab costs about $2.50. One remake can cost a practice $300 or more once you count the lab fee and a second appointment.

See how PrepCheck works, or try it first. Code SAMPLE gets you up to three free sample tabs.
